Sensors

Sensors Half Header
AccuSense Mag

Mag

The Econolite AccuSense Mag wireless vehicle detection system uses wireless magneto-resistive sensors to detect presence and movement of vehicles.

accusense micro radar

Micro Radar

The AccuSense MicroRadar is a compact in-ground radar sensor. MicroRadar sensors, installed very close to the roadway surfaces, detect trains, cars, trucks, and bicycles.

accusense radio blue

Radio

The AccuSense Radio is a low powered radio that maintains two-way wireless links to an AccuSense installation’s sensors and repeaters.

accusense control blue

Control

The AccuSense Control is a next-generation controller card that supports multiple radios and enables additional communications and processing power.

accusense isolator blue

Isolator

The AccuSense Isolator module provides surge protection, electrical isolation, and CAT5 cable length extension for the AccuSense Control to radio wired interface

Accusense connect blue

Connect

The AccuSense Connect is a stand-alone unit that provides an SDLC interface to TS2 controllers for the AccuSense Control.

Repeat

Repeat

The AccuSense Repeat is a battery-operated antenna unit that allows AccuSense sensors to be placed much farther away from the intersection stop bar, enabling stop bar and advance detection applications.

AccuSense

Mag | Micro Radar | Radio | Control | Isolator | Connect | Repeat

Overview

Advanced Traffic Control

As the complexities of traffic management increase, ITS strategies are valuing more and more the multi-tasking capabilities of intelligent detection sensors to not only accurately detect traffic at the stop bar to trigger a signal change, but to count, classify, track, and even provide advanced detection for traffic adaptive systems and dilemma zone safety applications. Today’s multi-modal intersections and roadways require the multi-modal capabilities of leading-edge detection sensors to provide capabilities such as bicycle detection and differentiation.

updated pillars wheel

Datasheets & Specifications

  • AccuSense Mag 10/08/2021
  • AccuSense Control
  • AccuSense Microradar
  • AccuSense Repeat
  • AccuSense Connect
  • AccuSense Isolator
View All

How does AccuSense help?

At A Glance

Econolite’s vehicle detection solutions continue to play a critical role in helping ITS deliver on the promise of enhanced public safety, reduced congestion, shorter travel times, lowered environmental impacts, and increased cost savings for all roadway users.

Mag

Features
  • Count and presence detection modes
  • Modes for bicycle and motorcycle detection
  • Flush mount or up to 4.25” (10.8 cm) depth in-pavement installation with no wires or lead-in cabling
  • Installs in less than 10 minutes
  • Expected 10 year battery life
  • Auto-calibration
  • 5 Year warranty
accusense mag blue

accusense micro radar

Micro Radar

Features
  • Count and presence detection modes
  • Modes for bicycle and motorcycle detection
  • Flush mount or up to 4.25” (10.8 cm) depth in-pavement installation with no wires or lead-in cabling
  • Installs in less than 10 minutes
  • Expected 10 year battery life
  • Auto-calibration
  • 5 Year warranty

Radio

Features
  • Simple Installation
  • Low Power Consumption
  • No calibration or adjustment required
accusense radio blue

accusense control blue

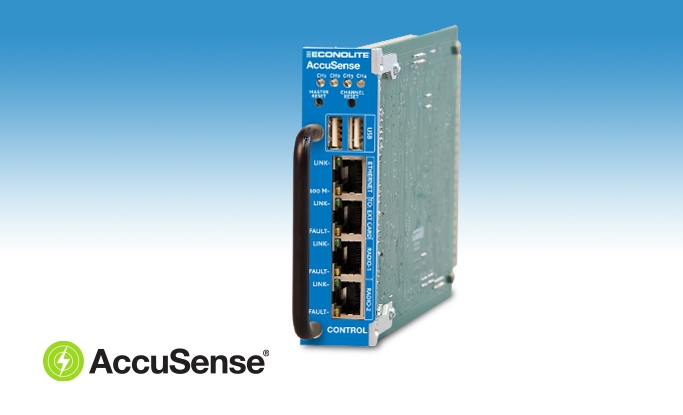

Control

Features
  • To/from AccuSense sensors and repeaters
  • Via contact closure signals to traffic controller
  • Via IP connectivity (wired or wireless) to traffic management systems, upstream servers, etc.
  • Per-lane or per-vehicle data
  • Data buffering (event caching) 500 K
  • Data storage (processed data) 1M

Isolator

Features
  • Surge protection up to 12A and electrical isolation up to 2,500 Vrms
  • Increased connection length between FlexControl and Radio
  • Power and Activity indicators for both local and Remote connections
  • 2 types of ground terminations
  • Mounts in traffic cabinet with DIN mount of bracket mount
accusense isolator blue

Accusense connect blue

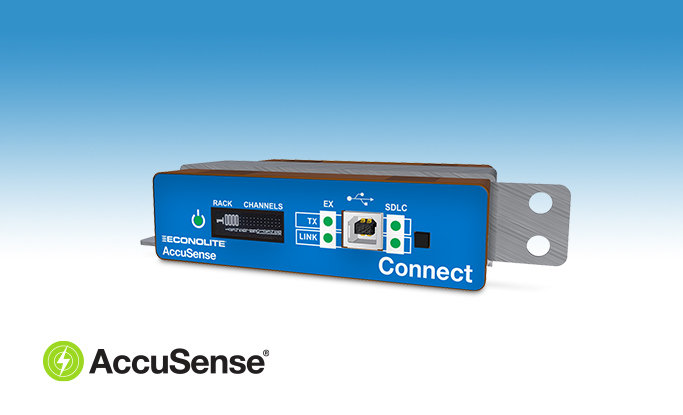

Connect

Features
  • Eliminates the need for EX cards and additional card slots in the cabinet
  • Adheres to NEMA Standard TS2-2003 requirements:8.6.1/ 8.6.2.
  • Utilizes the same configuration interface as CC and EX cards.
  • All current CC and EX card configuration options are supported.
  • Connect supports a total of 64 channels.

Repeat

Features
  • To/from wireless sensors
  • To/from access points
  • Supports operating in two directions with one repeater; its supported sensors communicate with the access point
  • Maximum single-hop range of ~2000 feet (610 meters) from supporting access point or repeater
  • Maximum single-hop range of ~300 feet (91 meters) from sensors with Long Range External Antenna
  • No calibration or adjustment required
Repeat

The Econolite Advantage

As the complexities of traffic management increase, ITS strategies are valuing more and more
the multi-tasking capabilities of intelligent detection sensors to not only accurately detect traffic at the stop bar to trigger a signal change, but to count, classify, track, and even provide advanced detection for traffic adaptive systems and dilemma zone safety applications. Today’s multi-modal intersections and roadways require the multi-modal capabilities of leading-edge detection sensors to provide capabilities such as bicycle detection and differentiation.


Econolite’s vehicle detection solutions continue to play a critical role in helping ITS deliver on the promise of enhanced public safety, reduced congestion, shorter travel times, lowered environmental impacts, and increased cost savings for all roadway users.
