Sensors
EVO RADAR™

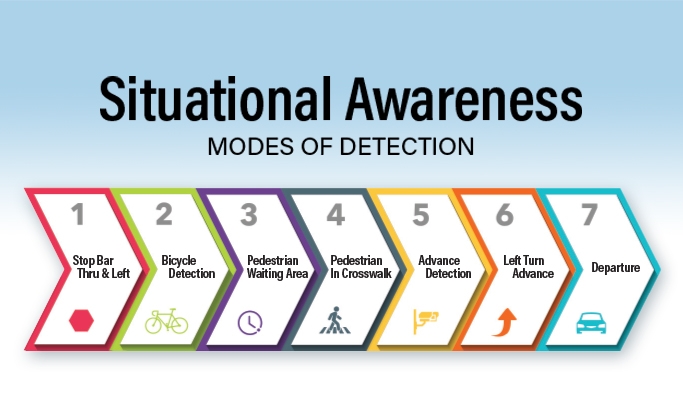

EVO RADAR™ sensors are a One-Stop-Shop detection solution and the most capable radar available. EVO RADAR uses forward-fire FMCW MIMO radar design and technology to achieve superior traffic detection accuracy and reliability across a variety of detection objectives, including stop bar, advance, departure, bicycle, and pedestrian detection.
EVO RADAR™
EVO RADAR Sensor | EVO RADAR Hub | Centracs® +Detect | Benefits | Contact
What is the EVO RADAR?
EVO RADAR sensors are ideally suited for a variety of intersections, using 110-degree field of view covering two approaches and up to 900 feet (275 m) of detection approach area with a single sensor. EVO RADAR sensors are designed to support diverse intersection geometries with reliable detection using fewer sensors to reduce travel times and traffic congestion, while increasing safety at intersections for vehicles, pedestrians, and bicyclists.
EVO RADAR Sensor
- Only two sensors required for a typical intersection
- Simple to set up and use
- Up to 900 feet (275 m) of detection
- Approach and departure detection
- Pedestrian and bicycle detection
- 128 tracked and classified objects generated from 512 unique detections
- Speed and object classification, vehicle counts, and ETA data
- 120 programmable outputs
- Consistent all-weather performance
- Cloud-based data analytics with Centracs® +Detect

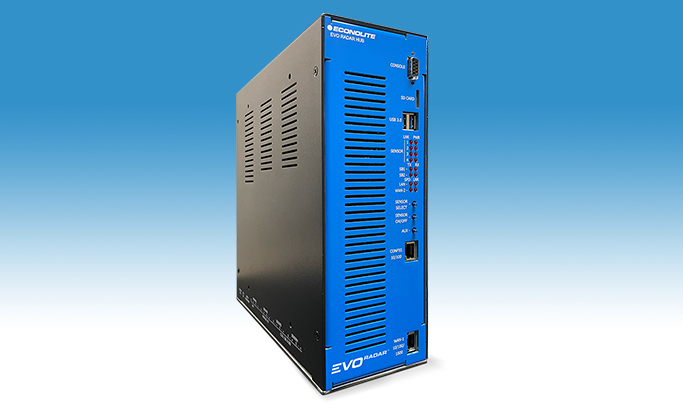

EVO RADAR Hub
- Significant processing power
- Quadcore i7 processor
- Provides easy system integration
- Built-in interfaces for NEMA TS2 SDLC, ATC / ITS SDLC, TS1 & 33x PIO
- Ethernet, and built-in power supplies
- Variety of cabinet mounting options
Detection System Data Analytics and Reporting
Enhance your EVO RADAR™ detection system with the advanced, cloud-based data reporting, analytics, and monitoring capabilities of Centracs® +Detect. +Detect automatically and virtually reports traffic conditions and critical datasets, such as road user classifications, volumes, turning movements, speeds, and signal performance metrics.
With +Detect, you can automatically access and leverage your detector system’s deep data sets for all-new levels of performance measures, without any additional installation requirements. +Detect also serves as an extension to the Centracs Mobility Platform, Econolite’s industry leading cloud-based ATMS.
This is why you should choose EVO RADAR
Streamlined Commutes
The EVO RADAR sensor ensures smooth traffic flow, leading to quicker and more efficient journeys for commuters.
Cost-Efficient Design
Covering multiple approaches with one sensor cuts down on installation and maintenance expenses, maximizing space utilization.
Enhanced Safety
By detecting all road users accurately, the EVO RADAR sensor enhances safety, minimizing the risk of accidents.
