EPIQ RADAR™
EPIQ RADAR™ is Econolite’s next-generation traffic detection system, combining cutting-edge FMCW radar technology with a built-in 1080p camera streaming at 30 FPS to deliver unmatched precision, reliability, and simplicity. Designed to cover two approaches and up to 900 feet (275 m) with just one sensor, EPIQ RADAR excels in detecting vehicles, pedestrians, bicycles, and complex traffic scenarios like stop bar, advance, and dilemma zones.
Its powerful hub, equipped with a quad-core Intel i7 processor, ensures lightning-fast data processing and seamless integration with legacy and modern traffic controllers. With Power Line Communications (PLC) enabling high-speed Ethernet connectivity up to 1,000 feet, cloud-based analytics via Centracs® +Detect, and intuitive setup, EPIQ RADAR is the ultimate solution for smarter, safer, and future-ready intersections.
EPIQ RADAR™
EPIQ RADAR Sensor | EPIQ RADAR Hub | Centracs® +Detect | Benefits | Contact

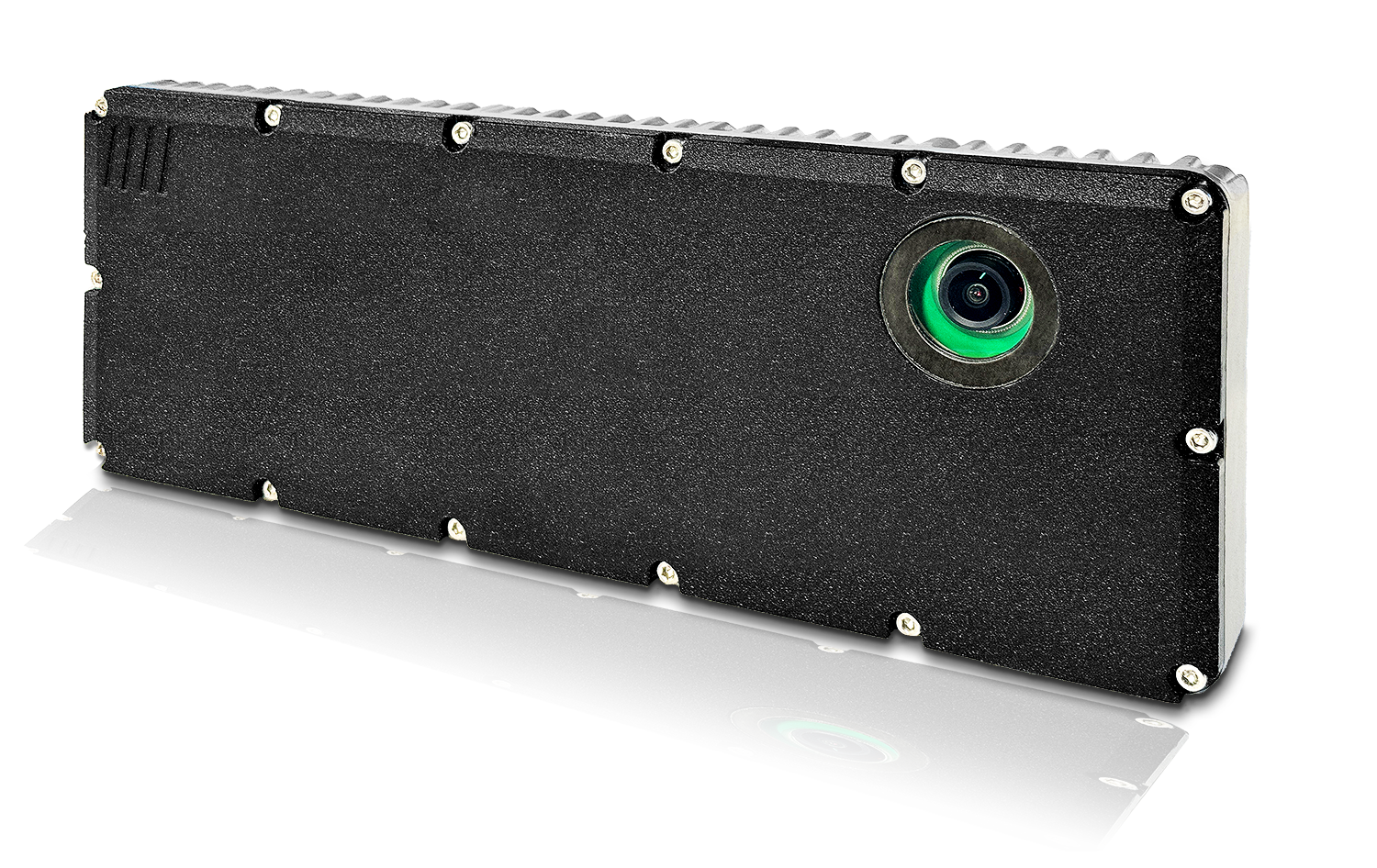

What is the EPIQ RADAR?
EPIQ RADAR isn’t just another sensor—it’s a powerhouse of precision, performance, and simplicity. With cutting-edge FMCW radar technology and a built-in 1080p camera streaming at 30 FPS, EPIQ RADAR delivers unmatched accuracy and reliability for every traffic scenario. EPIQ RADAR’s superior traffic detection accuracy and reliability across a variety of detection objectives.
Whether it’s stop bar, advance, departure, dilemma zone, red light, bicycle, or pedestrian detection— EPIQ RADAR handles it all with ease. Designed to cover two approaches and up to 900 feet (275 m) with a single sensor, it’s the smart solution for complex intersections, reducing congestion and enhancing safety for everyone on the road
Sensor Key Features
- Built-in 1080p Camera (30 FPS) with low-light sensitivity and latency of less than one second
- Stop bar, advance, and departure detection up to 900 feet (275 m)
- Lane-by-lane detection across a wide 110° field of view
- Pedestrian and bicycle detection, plus vehicle classification and ETA data
- 128 tracked objects from 512 unique detections
- Power Line Communications (PLC) up to 1,000 feet (300 m)
- Cloud-based analytics via Centracs® +Detect
- Consistent performance in all weather conditions
- Only two sensors needed for full intersection coverage
- Quick setup and intuitive operation

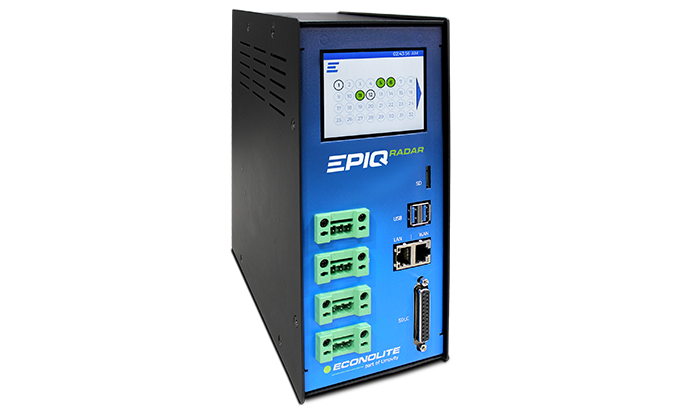

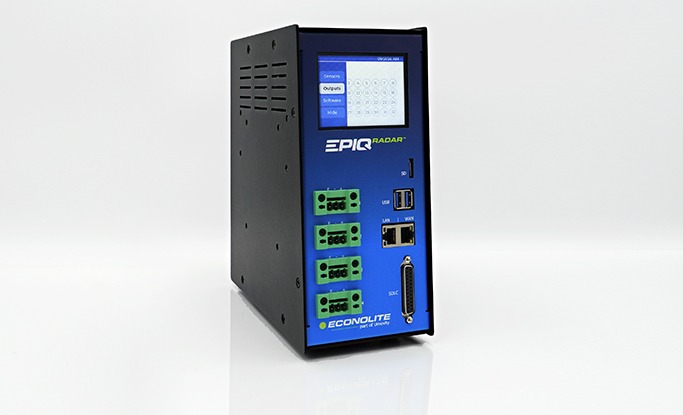

EPIQ RADAR Hub
EPIQ RADAR Hubs use advanced PLC to deliver 10/100 Ethernet connectivity to EPIQ RADAR sensors—up to 1,000 feet (300 m) away using a simple shielded AWG 14/2 cable. With blazing speeds of up to 88 Mbps, your detection data moves fast and reliably. EPIQ RADAR sensors continuously transmit vehicle and pedestrian detection data to the Hub via PLC. The Hub then transforms this data into NEMA TS2 and ATC SDLC messages, ensuring seamless integration with your traffic controllers.
Hub Key Features
- Connect up to four EPIQ RADAR sensors for expanded coverage
- LCD touchscreen display provides real-time system feedback
- Quad-core i7 processing power for lightning-fast performance
- Seamlessly integrates with various cabinet types and communication interfaces
- Compact form factor for flexible cabinet mounting
- Status LEDs offer instant diagnostic feedback
Supercharge EPIQ RADAR with Centracs® +Detect
Take your traffic detection to the next level with Centracs +Detect—the cloud-powered analytics engine that transforms raw data into actionable insights. Seamlessly integrated with your EPIQ RADAR system, +Detect unlocks a whole new dimension of performance monitoring, without the need for extra hardware or installation. Centracs +Detect delivers:
- Real-time traffic conditions;
- Road user classifications and volumes;
- Turning movements and speed analytics;
- Signal performance metrics; and
- All automatically reported, all virtually accessible—anytime, anywhere.
As a powerful extension of the Centracs Mobility Platform, +Detect brings the full force of Econolite’s industry-leading ATMS to your fingertips. From smarter signal timing to deeper operational insights, it’s the ultimate upgrade for agencies ready to embrace intelligent mobility.
Need Information on the EVO RADAR™ Detection System?
While EPIQ RADAR is our latest and most advanced radar detection solution—designed to deliver enhanced performance, faster deployment, and smarter integration—we know many of you may still need information on EVO RADAR, our previous generation radar detection product.
If you’re looking for specifications, support materials, or product details for EVO RADAR, we’ve got you covered. Whether you’re upgrading to EPIQ RADAR or maintaining your existing EVO RADAR system, we’re here to support your journey.
This is why you should choose EPIQ RADAR
Streamlined Commutes
The EPIQ RADAR sensor ensures smooth traffic flow, leading to quicker and more efficient journeys for commuters.
Cost-Efficient Design
Covering multiple approaches with one sensor cuts down on installation and maintenance expenses, maximizing space utilization.
Enhanced Safety
By detecting all road users accurately, the EPIQ RADAR sensor enhances safety, minimizing the risk of accidents.
